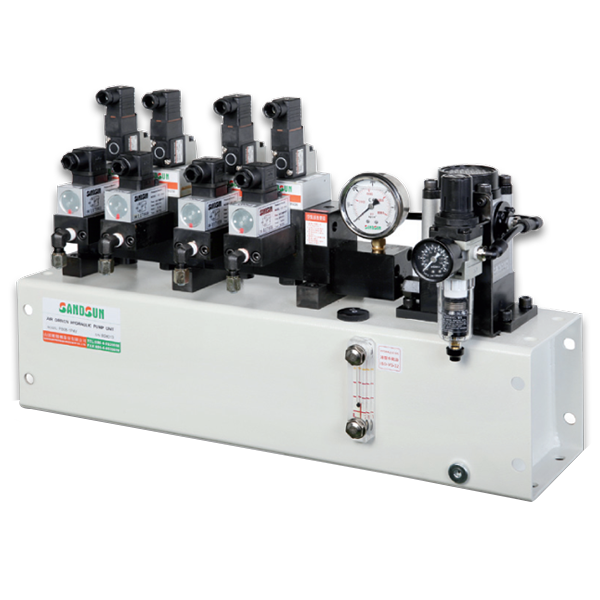

Air Driven Hydraulic Pump Unit
MODEL SELECTION
| ① | ② | ③ | ④ |
|---|---|---|---|
| Pump model:PB08 / PC12(22) | No. of Pump | No. of Control Circuit | Non-leak Valve: V(STANDARD TYPE) / M (Big flow type) |
- The hydraulic pump is driven by air. Once the outlet hydraulic pressure reaches the setting pressure, it will stop pumping which won't waste any energy. The pressure would be added automatically is the outlet pressure is reducing. It consists of the function to keep the pressure continuously..
DISCHARGE FLOW CHARACTERISTICS

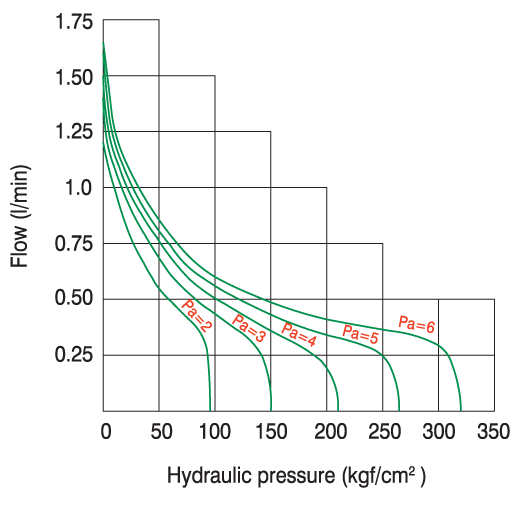

PB08

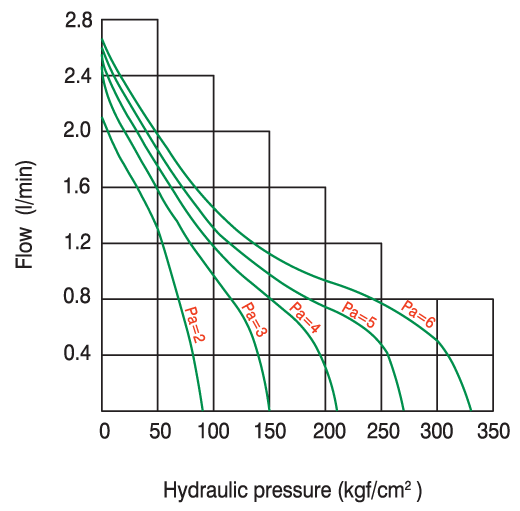

PC12
Pa: Preumatic Pressure
OUTLINE DIMENSIONS
Unit: mm
| MODEL |
|---|
| PB08-1P4V |
| PC12-1P4V |
| PC12-1P4V |
| PCC1222-2P4M |
| L | L1 | L2 | H | H1 | H2 | D1 | D2 | V |
|---|---|---|---|---|---|---|---|---|
| - | 588 | 563 | 367 | 150 | 80 | 235 | - | 10 |
| 650 | 588 | 563 | 367 | 150 | 80 | - | 175 | 10 |
| 650 | 588 | 563 | 417 | 200 | 80 | - | 225 | 17 |
| 990 | 868 | 843 | 417 | 200 | 80 | - | 225 | 27 |
V: Volume of oil tank (Liter)
CIRCUIT CONTROL SYSTEM
