Die Arm

Quick Die Change System for press machine 1 2 3 4 5
ADD TO INQUIRY

The Die Arm features a one piece design and allows for ease of use. It can help operators to pull out or push in the die from the press bolster easily.
There are 3 easy operative ways for storage when die arm is not used; which are dismantling, hanging, folding types.

MODEL RC RD RE RF RS

型式選定

MODEL SELECTION

① MODEL Storage Method
C Dismantling
D Hanging
E Folding (short)
F Folding (long)
② Specification
580
760
880
990
  • The support should be changed into lengthening (S) model when using die arm cooperated with two-stepped die lifter. (EX：RC-16A→ RC-16SA,RC-16HA→RC-16HSA)

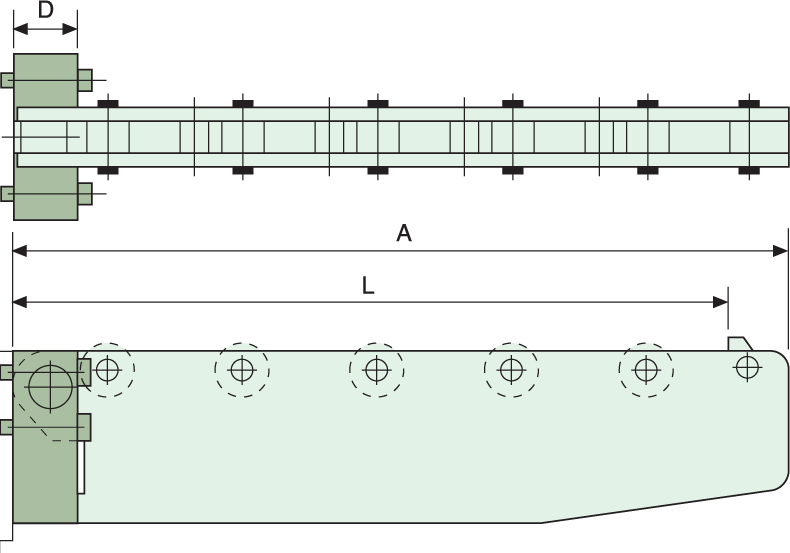

MODEL RC (DISMANTLING)

  • The arm itself and the support in Model RC can be used separately.
MODEL
RC-580A
RC-760A
RC-880A
RC-990A

RC-05125A
RC-05160A
RC-05200A
RC-07125A
RC-07160A
RC-07200A
RC-08125A
RC-08160A
RC-08200A
RC-09160A
RC-09200A
Model of Support Length of The Die
(L) 		Capacity (kg) Total Length (A) Width
(W) 		Dimension of Support Hole Pattern for Installation Number of Rollers
D B H
RC-12A 500 800 550 46 48 115 118 A type 5
700 600 750 7
RC-14A 800 800 850 138 B Type 8
RC-16A 900 900 950 158 9

RC-14HA 500 1250 550 50 48 115 138 B Type 7
RC-15HA 1600 148
RC-16HA 2000 158
RC-14HA 700 1250 750 138 9
RC-16HA 1600 158
RC-18HA 2000 178
RC-16HA 800 1250 850 158 10
RC-18HA 1600 178
RC-19HA 2000 188
RC-18HA 900 1600 950 178 11
RC-20HA 2000 198

MODEL RD (HANGING)


  • The arm itself and the support in Model RC can be used separately.
MODEL Model of Support Length of The Die (L) Capacity (kg) Total Length (A) Width Dimension of Support Hole Pattern For Installation Number of Rollers Dimension After Folding
D B H X Y
RD-580A RD-12A 500 800 550 52 115 118 A Type 5 145 630
RD-760A 700 600 750 7 830
RD-880A RD-14A 800 800 850 138 B Type 8 165 950
RD-990A RD-16A 900 900 950 158 9 185 1070

RD-05125A RD-14HA 500 1250 550 52 115 138 B Type 7 165 655
RD-05160A RD-15HA 1600 148 175 665
RD-05200A RD-16HA 2000 158 165 675
RD-07125A RD-14HA 700 1250 750 138 9 165 855
RD-07160A RD-16HA 1600 158 185 875
RD-07200A RD-18HA 2000 178 205 895
RD-08125A RD-16HA 800 1250 850 158 10 185 975
RD-08160A RD-18HA 1600 178 205 995
RD-08200A RD-19HA 2000 188 215 1005
RD-09160A RD-18HA 900 1600 950 178 11 205 1095
RD-09200A RD-20HA 2000 198 225 1115

MODEL RE ( FOLDING )

  • Model RE itself can be turned left or right for storage.

MODEL RF ( FOLDING )

  • The distance for installing the two arms of Model RE and RF should be more than the distance between the installations (C).
MODEL
RE, RF-580A
RE, RF-760A
RE, RF-880A
RE, RF-990A

RE, RF-05160A
RE, RF-05200A
RE, RF-07160A
RE, RF-07200A
RE, RF-08160A
RE, RF-08200A
RE, RF-09160A
RE, RF-09200A
Length of The Die L (mm) Capacity (kg) Total Length A (mm) Min. Distance for Installation C (mm) Dimension After Folding Number of Rollers Number of Rollers M N Hole Pattern For Installation
X Y B H
500 800 550 525 87 150 115 118 5 57 120 A Type
700 600 750 725 7
800 800 850 825 138 8 B Type
900 900 950 925 158 9

500 1600 550 525 87 150 115 148 7 57 120 B Type
2000 158
700 1600 750 725 9
2000 178
800 1600 850 825 10
2000 188
900 1600 950 925 178 11
2000 198

DIE ARM ( HEAVY DUTY )

MODEL RS ( SUPPORT ) - MODEL SELECTION
Ⓛ Ⓗ Ⓦ
Use length The height between the plate and the ground Die weight

*Please clearly indicate the above information while order.
*Adopt D Type to install hole pattern.
*Capacity of Model RS is 3000 (KG)/PC

HOLE PATTERN FOR INSTALLATION

●Apply for DL/DB80 Die Lifter
